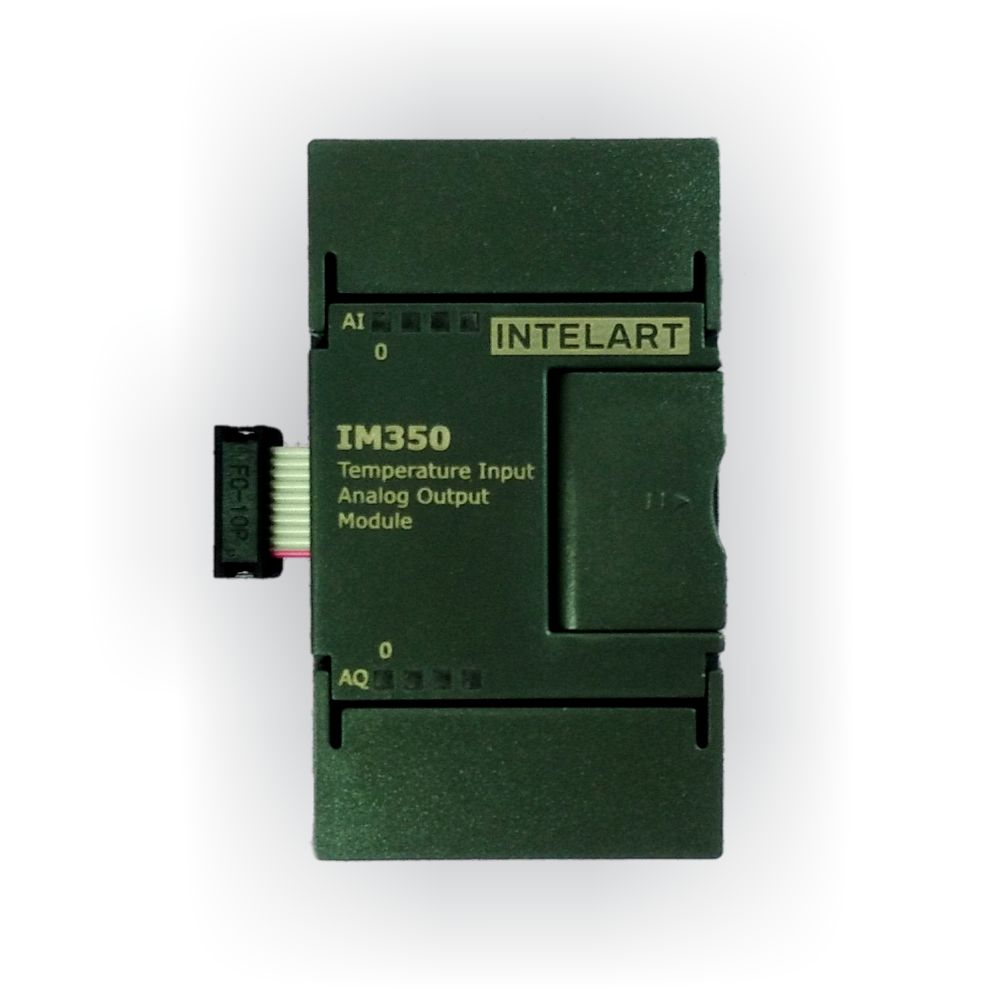

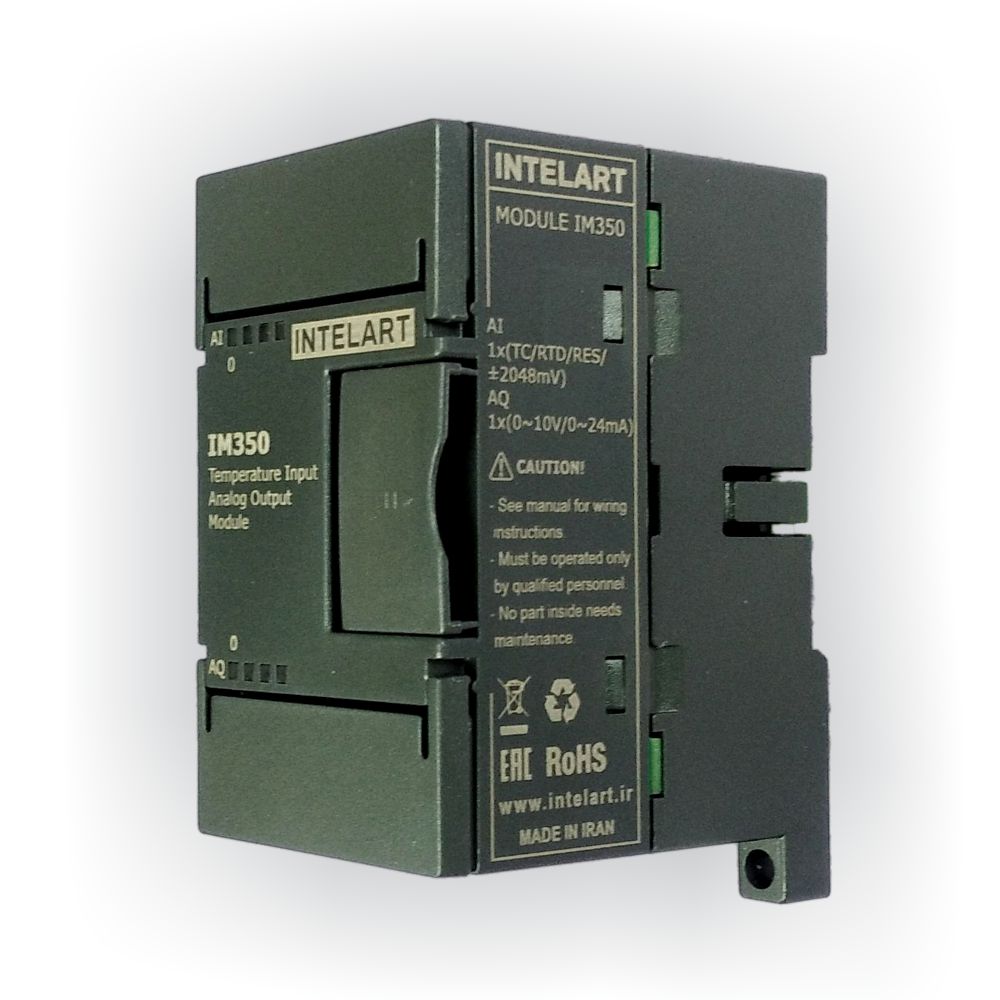

IM350

Analog Temperature / Output Module
1 Channel 16 or 24 bit Analog Input Optimized for Temperature Applications
Measuring Range: From +/-16mV to +/- 2048 mV, PT100, PT1000, Resistance, Thermocouple (K, J, R, T, N, E, B, S, C)
Configurable Smoothing
Configurable Reference Junction

1 Channel 12 bit General Analog Output
Measuring Range: 0-10 V & 0-24 mA
Configurable CPU Stop Action Shut Down, KeepLastValue, Output CustomValue

دانلود راهنمای کاربری
